16.07 kWh Residential BESS - Vertical
* Our team responds within 24 hours — Mon to Fri, 8:30–17:00
Residential BESS

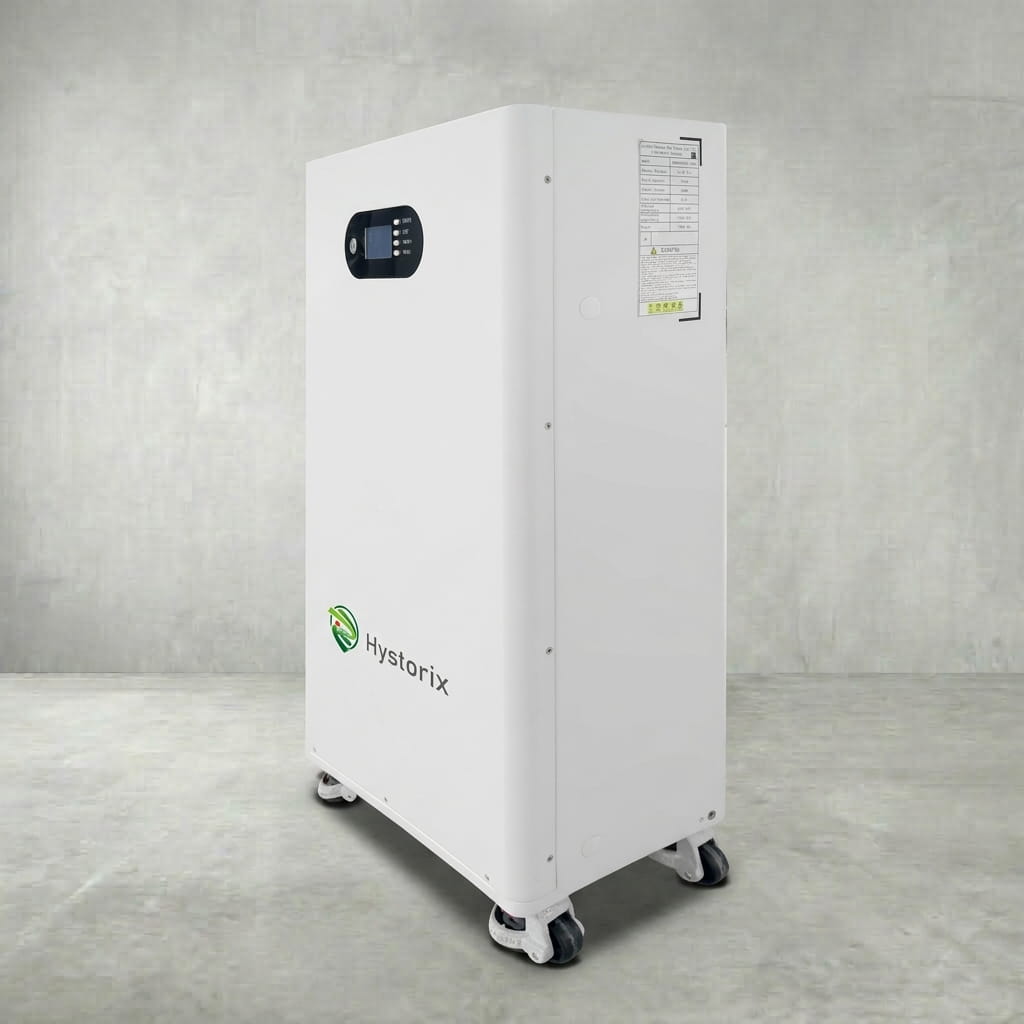

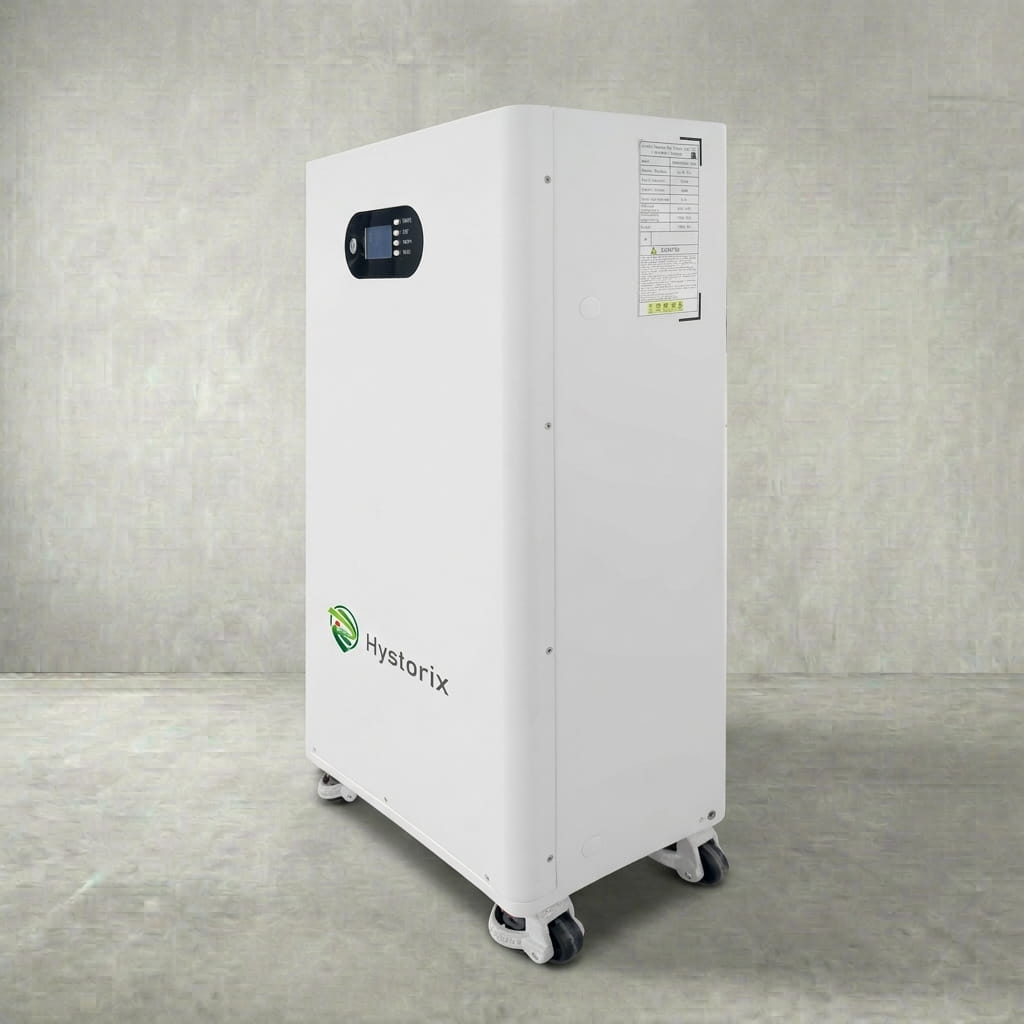

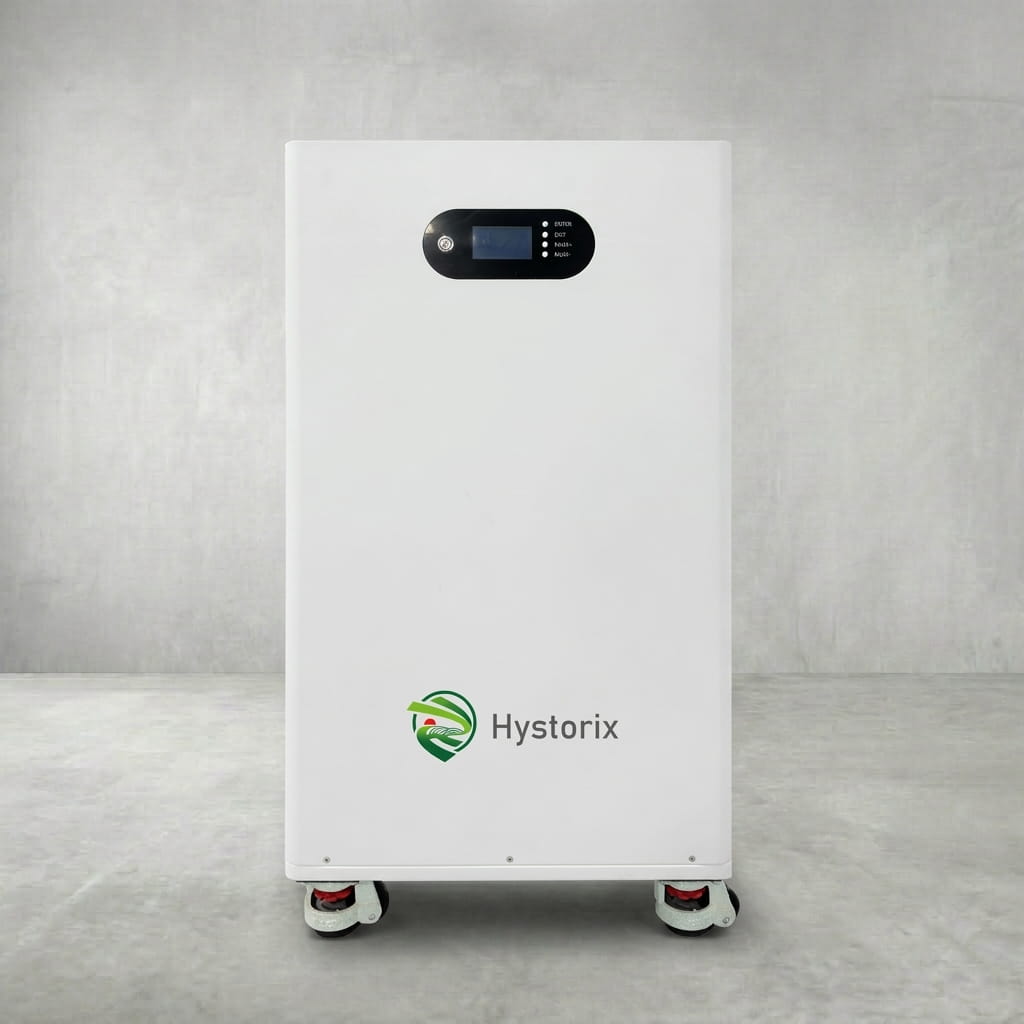

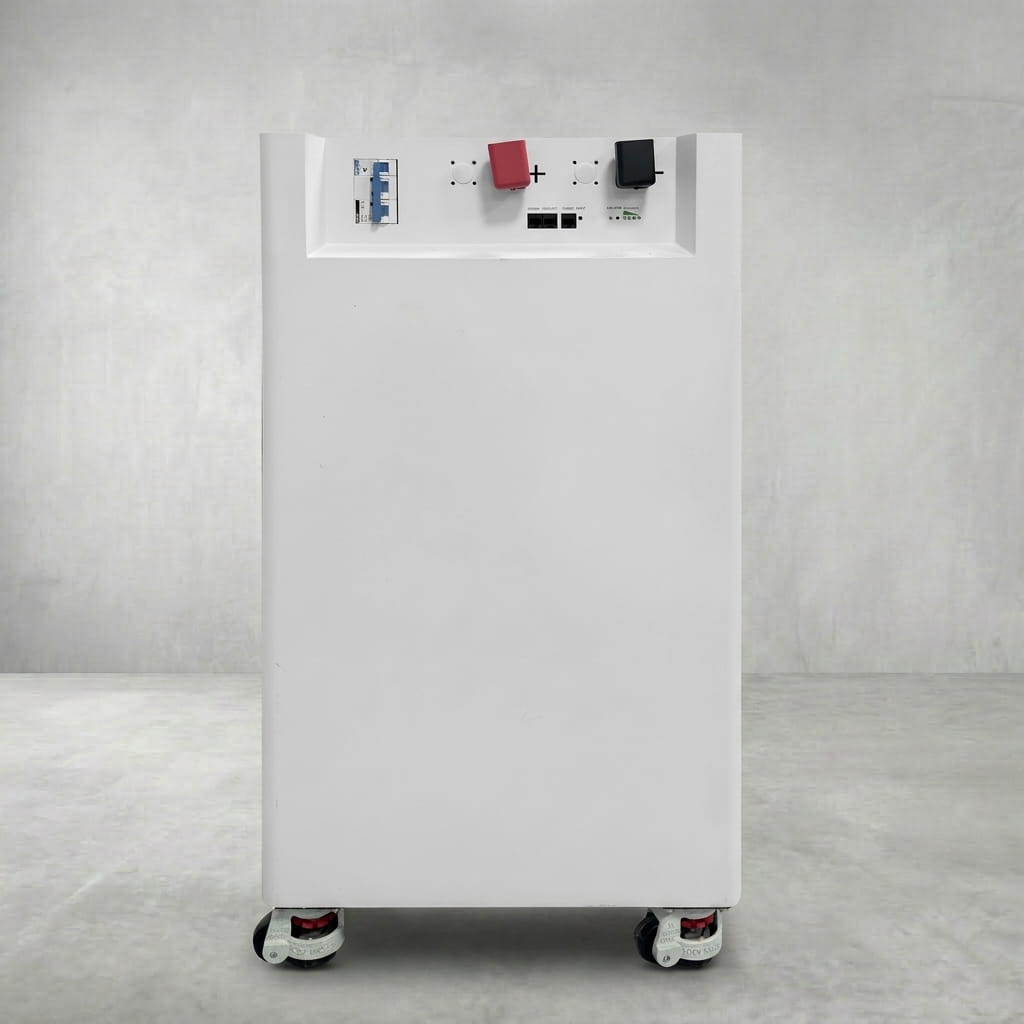

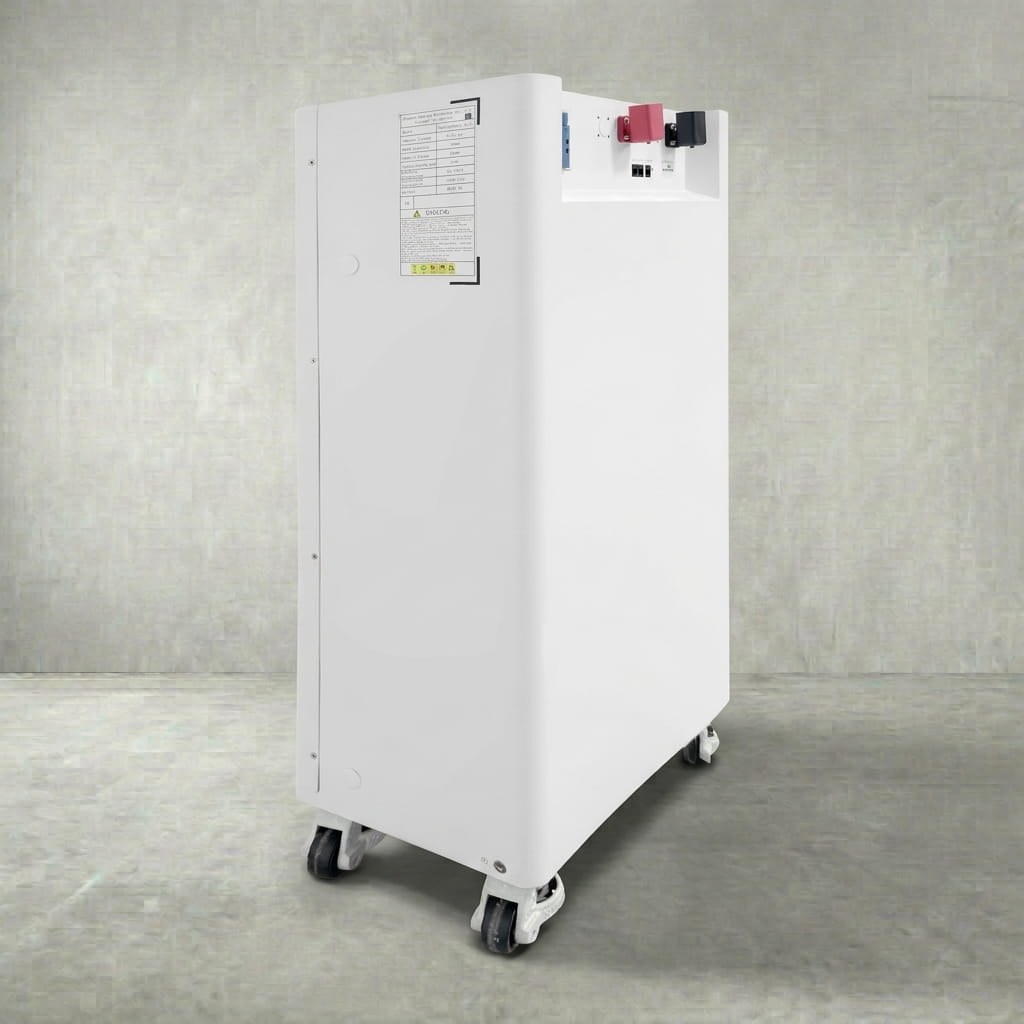

16.07 kWh Residential BESS - Vertical
The Hystorix 16.07kWh Residential BESS Vertical is a premium wall-mounted home energy storage system engineered for households seeking maximum solar self-consumption and complete grid independence through a sleek, space-saving vertical design.
TUV Certified
IEC 62619
BMS Protection
Nominal Capacity
16.07 kWh
Nominal Voltage
51.2V
Rated Current
157A
Battery Cell Specifications
3.2V/314Ah
16.07kWh Residential BESS - Vertical
Why Choose Hystorix?
Smart & User Friendly
Sleek vertical design with simple wall-mount installation and broad inverter compatibility makes home energy management completely effortless.
Secure & Reliable
Intelligent multi-level BMS continuously safeguards against overcharge, over-discharge, short circuit, and thermal risks for worry-free home operation.
Efficient & Flexible
High-capacity 16.07kWh storage with superior round-trip efficiency maximizes solar self-consumption and adapts perfectly to any household energy demand.
16.07kWh Residential BESS - Vertical
Benefits
Reduce Electricity Bills by Up to 40%
Store solar energy during the day and discharge during peak tariff hours, significantly cutting your monthly electricity costs with a typical ROI achieved within 3–5 years.
10+ Years of Reliable Performance
Built with premium LFP cells delivering 6,000+ charge-discharge cycles at 80% depth of discharge, ensuring long-lasting and dependable energy storage with minimal maintenance.
Fully Compatible with Your Existing Solar System
Seamlessly integrates with all major inverter brands via multiple communication protocols, making it effortless to add reliable battery backup to any existing or new solar installation.
Internationally Certified & Safe for Home Use
Certified under TUV and IEC 62619 with advanced multi-layer BMS protection, ensuring complete peace of mind with the highest standards of safety for residential environments.
16.07kWh Residential BESS - Vertical
Key Features
-
01
Support Varity of Communication ProtocolsCompatible with CAN, RS485, and Modbus TCP for seamless integration with all major inverter brands and smart home energy management systems.
-
02
Intelligent Battery Management SystemAdvanced multi-level BMS continuously monitors cell voltage, temperature, and state of charge to ensure maximum safety, efficiency, and battery longevity.
-
03
Modular Structure for Easy InstallationLightweight modular design allows quick and hassle-free wall-mounting or vertical placement without requiring specialized tools or complex wiring.
-
04
Long Life CycleEngineered with premium LFP cells delivering 6,000+ charge-discharge cycles, ensuring over a decade of reliable performance with minimal capacity degradation.
-
05
Excellent Security PerformanceMulti-layer protection against overcharge, over-discharge, short circuit, and thermal runaway guarantees safe operation in all residential environments.
-
06
LED Light DisplayBuilt-in LED indicator panel provides real-time visual feedback on battery status, charge level, and system alerts for effortless monitoring at a glance.
16.07kWh Residential BESS - Vertical

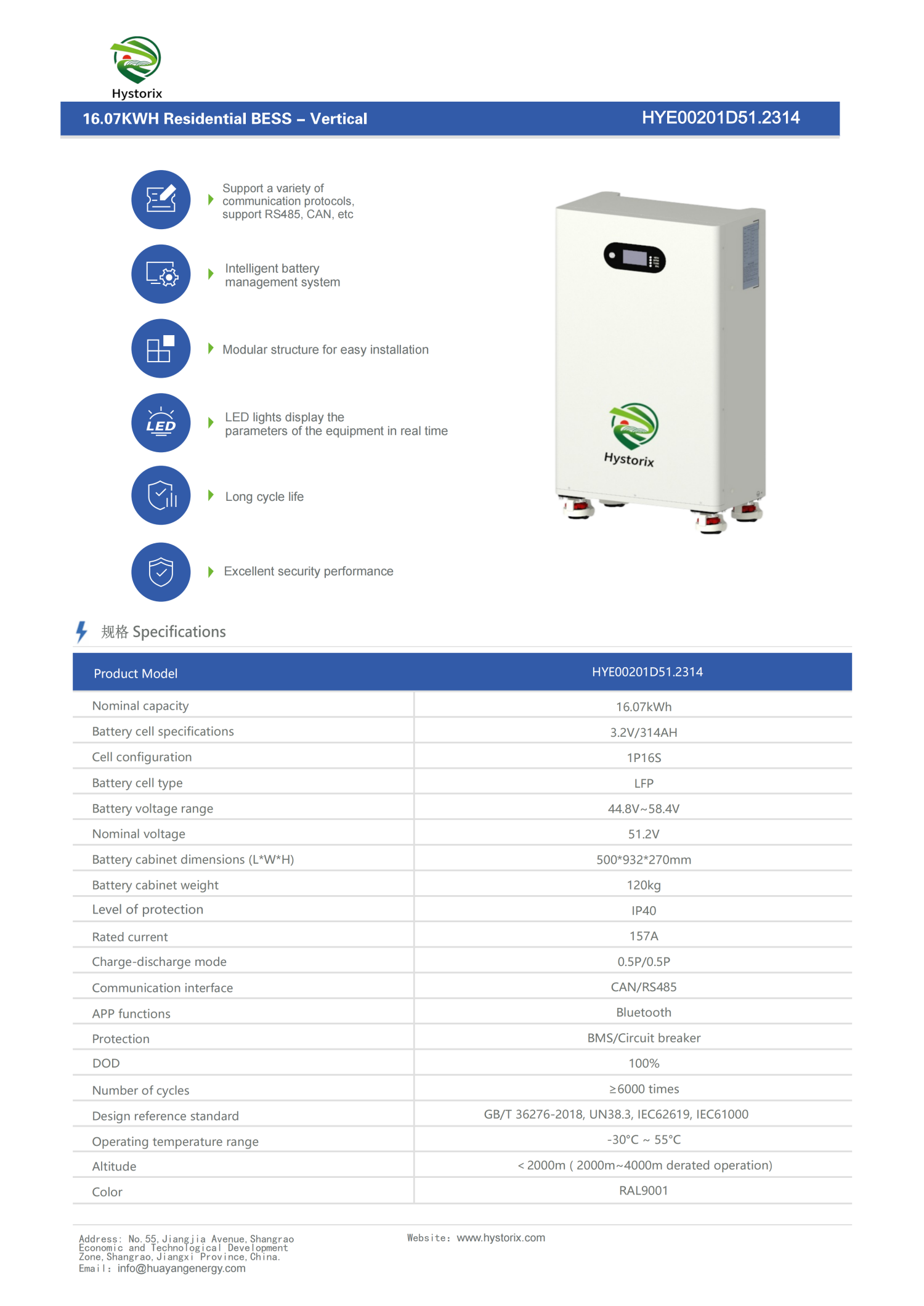

Specifications
Product Model | HYE00201D51.2314 | |
Nominal Capacity | 16.07 kWh | |
Battery Cell Specifications | 3.2V/314Ah | |
Cell Configuration | 1P16S | |
Battery Cell Type | LFP | |
Battery Voltage Range | 44.8V ~ 58.4V | |
Nominal Voltage | 51.2V | |
Battery Cabinet Dimensions (W*H*D) | 500*932*270mm | |
Battery Cabinet Weight | 120kg | |
Level of Protection | IP40 | |
Rated Current | 157A | |
Charge-discharge Mode | 0.5P/0.5P | |
Communication Interface | CAN/RS485 | |
App Function | Bluetooth | |
Protection | BMS/Circuit Breaker | |
DOD | 100% | |
Number of Cycles | ≥6000 times | |
Design Reference Standard | GB/T 36276-2018, UM38.3, IEC62619, IEC61000 | |
Operating Temperature Range | -30°C ~ 55°C | |
Altitude | <2000m (2000m ~ 4000m Power Derating Operation) | |
Color | RAL 9001 | |
