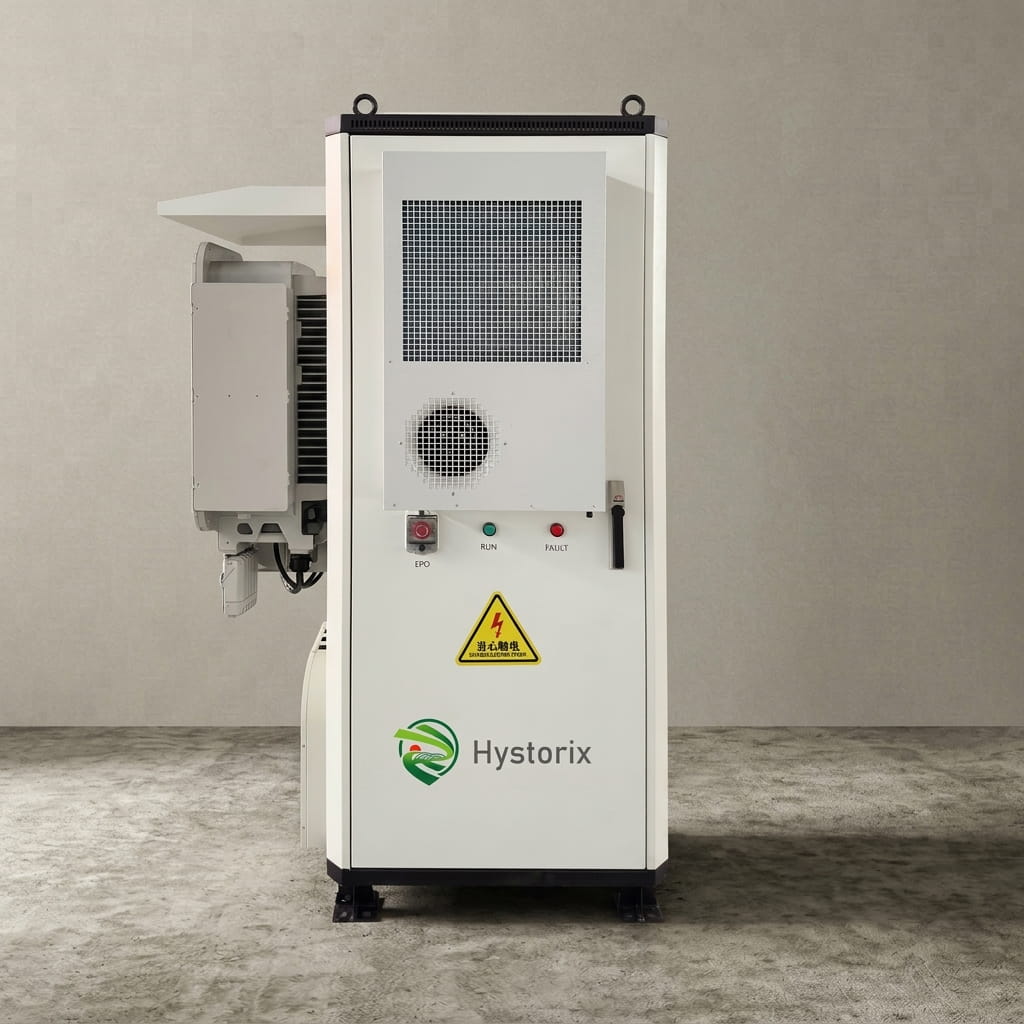

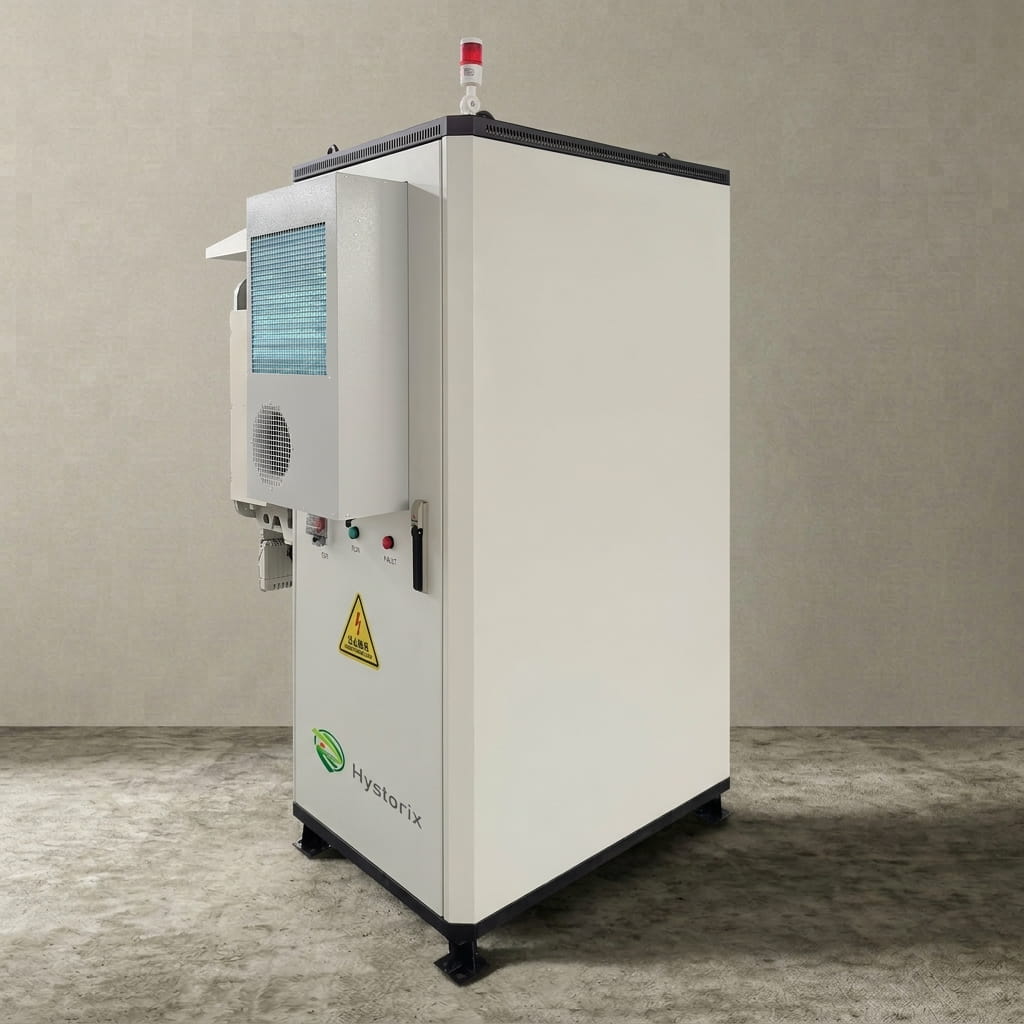

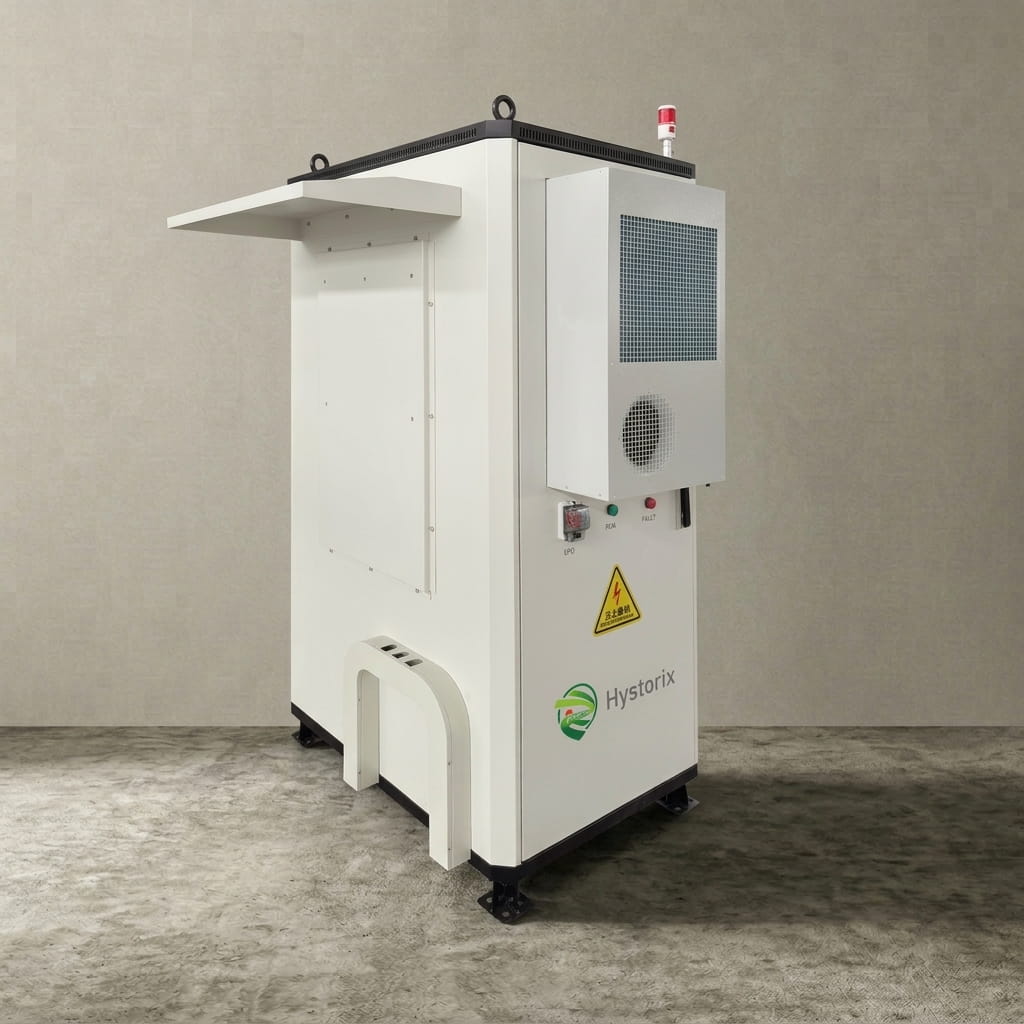

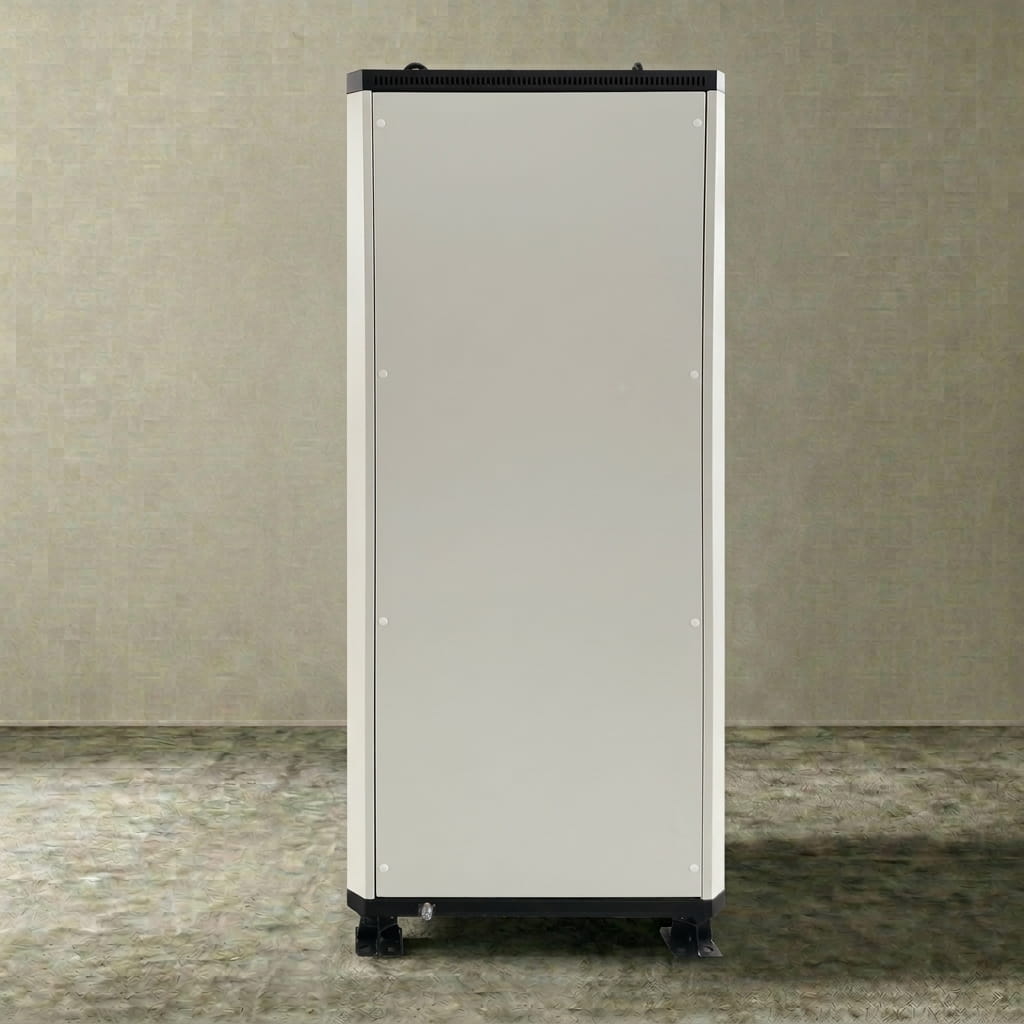

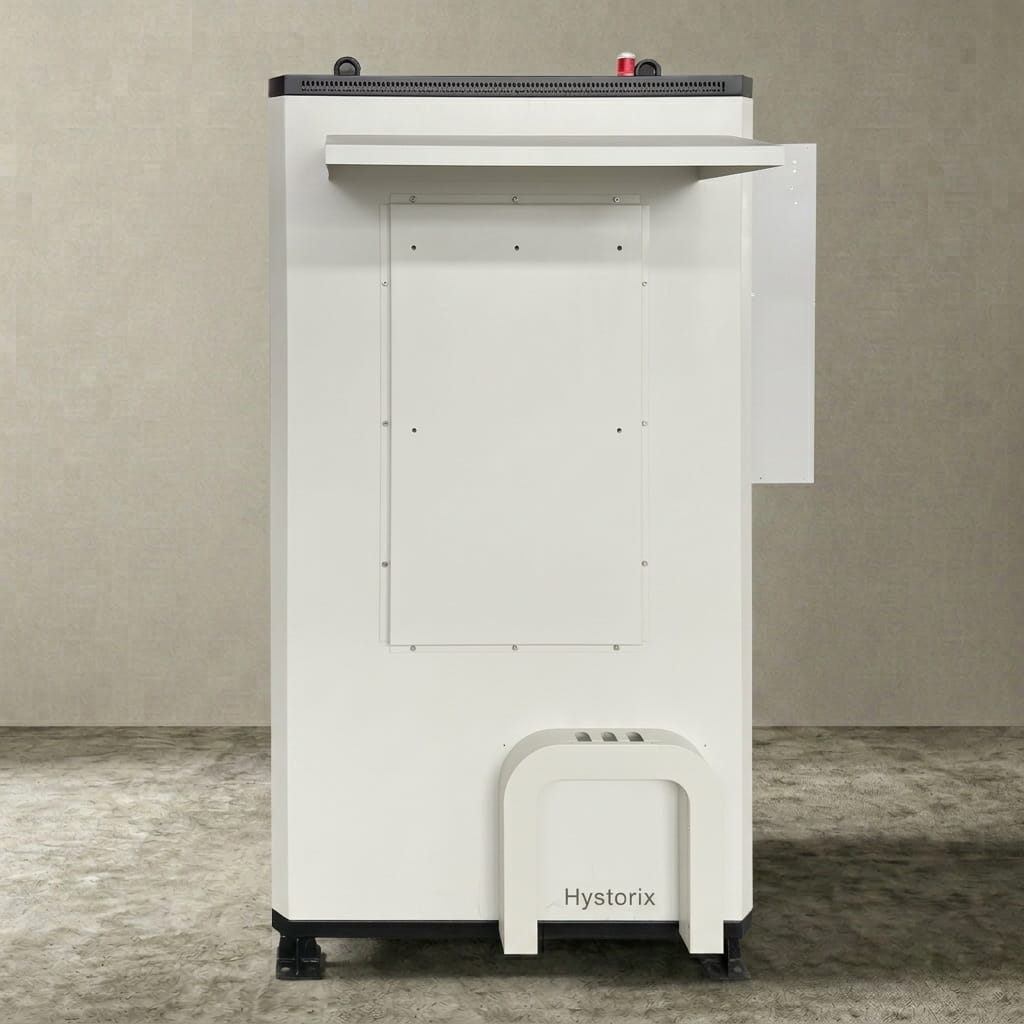

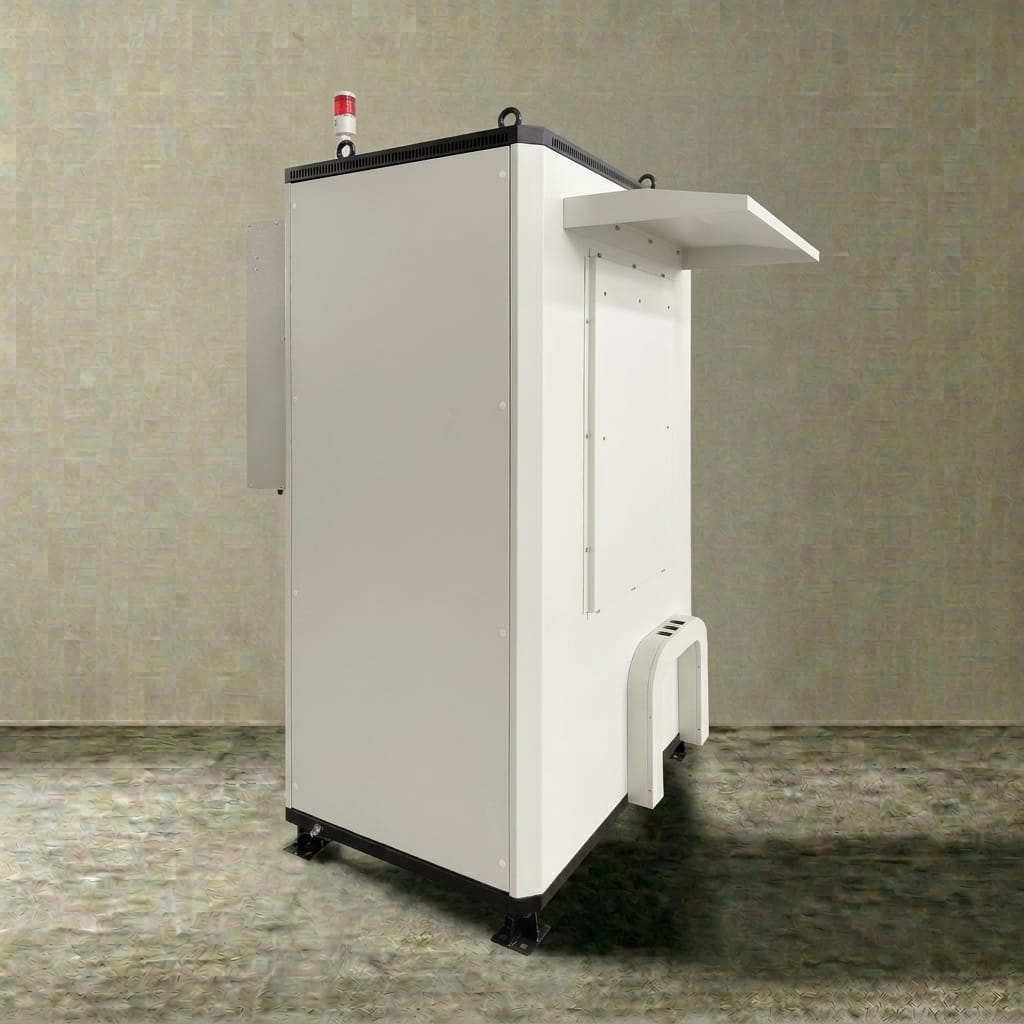

102 kWh Industry & Commercial Air Cooling BESS
The Hystorix 102kWh Industry & Commercial Air Cooling BESS is a mid-range lithium iron phosphate energy storage system engineered for medium-sized commercial facilities, retail complexes, and light industrial operations seeking reliable and cost-effective energy management through efficient forced air cooling technology.
TUV Certified
IEC 62619
IP55 Protection
Nominal Capacity
102 kWh
Nominal Voltage
499.2V
Rated Current
100A
Battery Cell Specifications
3.2V/205Ah
102kWh Industry & Commercial Air Cooling BESS
Why Choose Hystorix?
Smart & User Friendly
Intuitive cloud monitoring, simple parallel configuration, and broad inverter compatibility make large-scale energy storage deployment and management completely effortless.
Secure & Reliable
Advanced multi-level BMS with IP55 protection and comprehensive forced air thermal management ensures consistently safe and dependable operation across all commercial environments.
Reliable Long-Term Performance
Premium Grade A LFP cells with intelligent multi-level BMS protection and low-maintenance energy storage performance for over a decade in any light commercial environment.
102kWh Industry & Commercial Air Cooling BESS
Benefits
Reduce electricity costs by up to 40%
Charge during low-tariff hours, discharge during peak pricing. ROI typically achieved in 3–5 years depending on utility tariff structure.
Reduce Commercial Energy Costs Significantly
By storing energy during low-tariff periods and discharging during peak pricing hours, the 102kWh Air Cooling BESS dramatically reduces monthly electricity bills and peak demand charges, delivering a strong and measurable return on investment within 3–5 years for small businesses and offices.
Seamless Solar Integration
Fully compatible with all major solar inverter brands through CAN, RS485, and Modbus TCP communication protocols, enabling small businesses and offices to maximize solar self-consumption and achieve greater grid independence with minimal installation complexity.
Safe & Certified for Commercial Use
TUV and IEC 62619 certifications combined with IP55-rated enclosure and advanced multi-layer BMS protection guarantee complete operational safety and full global compliance for commercial deployment across all major regulated energy markets worldwide.
102kWh Industry & Commercial Air Cooling BESS
Key Features
-
01
Round-Trip EfficiencySuperior 95%+ round-trip efficiency minimizes energy loss during every charge-discharge cycle, maximizing overall system output and significantly reducing operational electricity costs for commercial facilities.
-
02

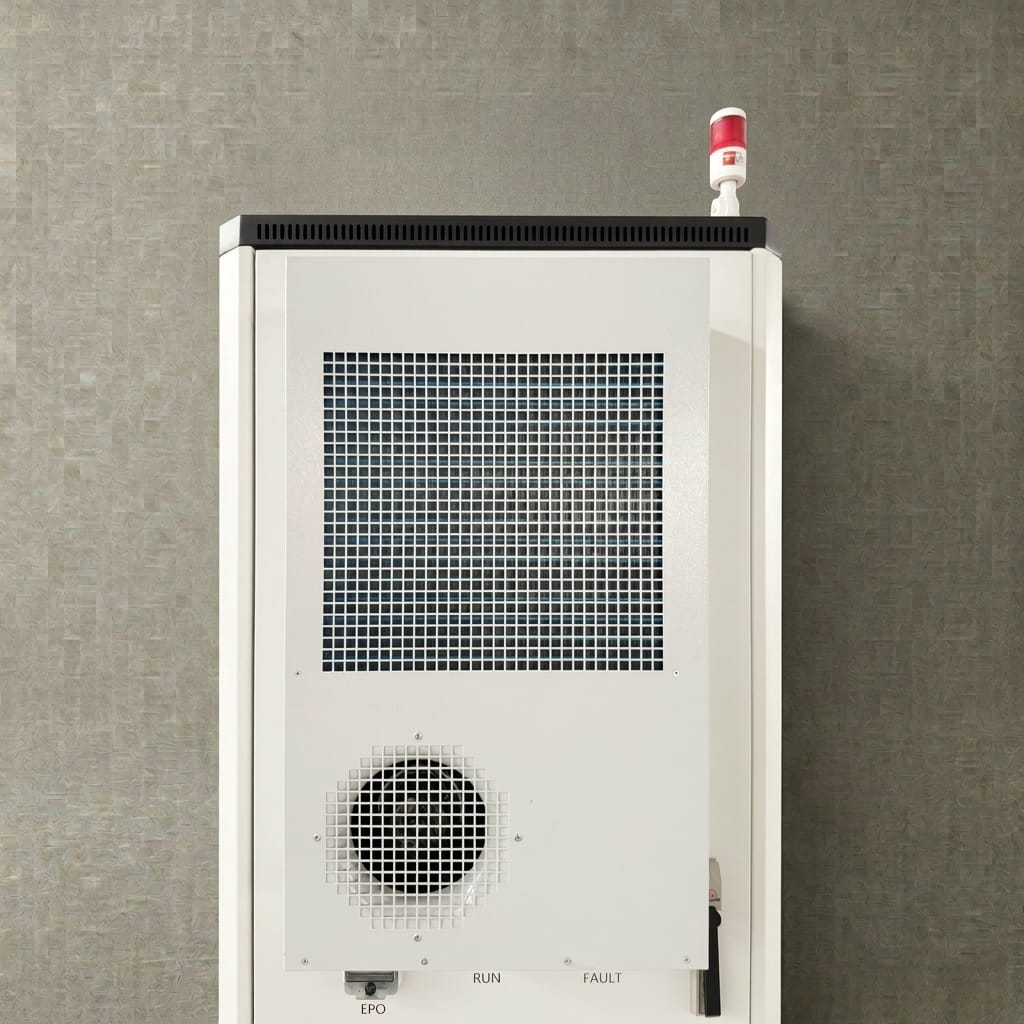

Cooling SystemAdvanced forced air cooling technology maintains optimal internal operating temperature, preventing thermal stress and ensuring stable, efficient battery performance across all commercial environments and seasonal conditions.
-
03
Modular ArchitectureFlexible modular design supports seamless capacity expansion from 102kWh to higher configurations without system replacement, providing a scalable and future-proof energy storage investment for growing commercial energy demands.
-
04
Operating Temperature RangeEngineered to perform reliably across a wide temperature range from -30°C to +55°C, ensuring consistent and stable energy storage operation in diverse climatic environments.
-
05
LFP ChemistryLithium Iron Phosphate — safest lithium chemistry, no thermal runaway risk.
102kWh Industry & Commercial Air Cooling BESS

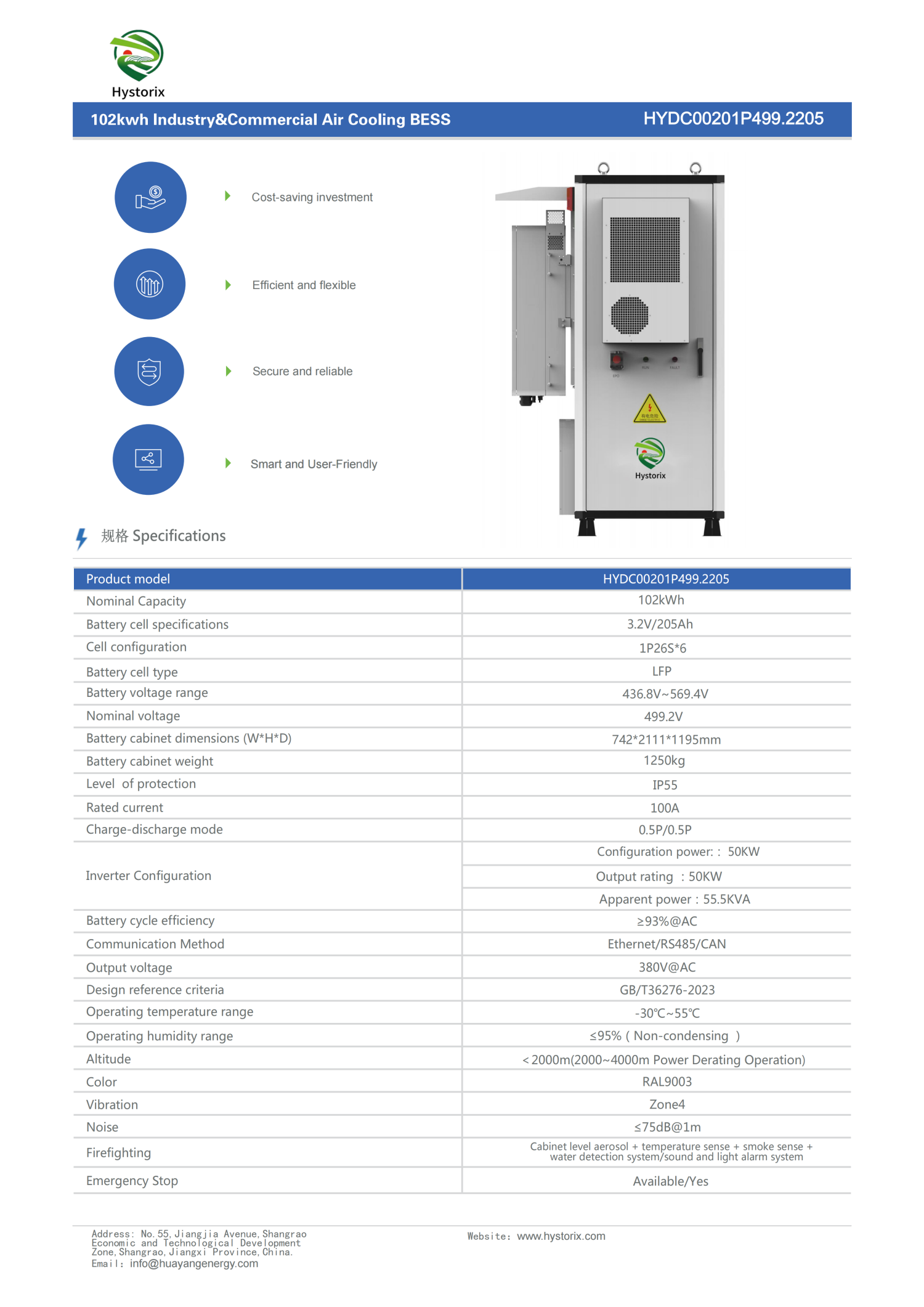

Specifications
Product Model | HYDC00201P499.2205 | |
Nominal Capacity | 102 kWh | |
Battery cell specifications | 3.2V/205Ah | |
Cell Configuration | 1P26S*6 | |
Battery Cell Type | LFP | |
Battery Voltage Range | 436.8V ~ 569.4V | |
Nominal Voltage | 499.2V | |

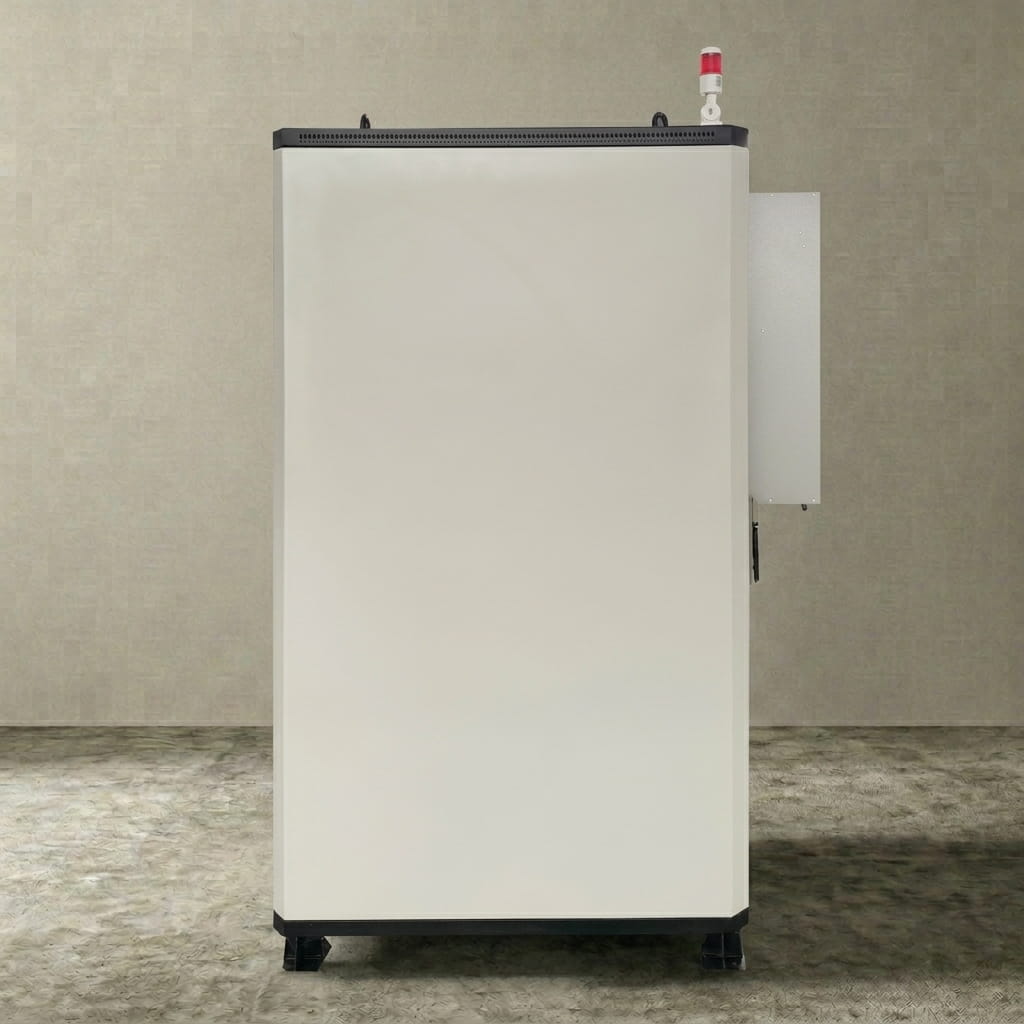

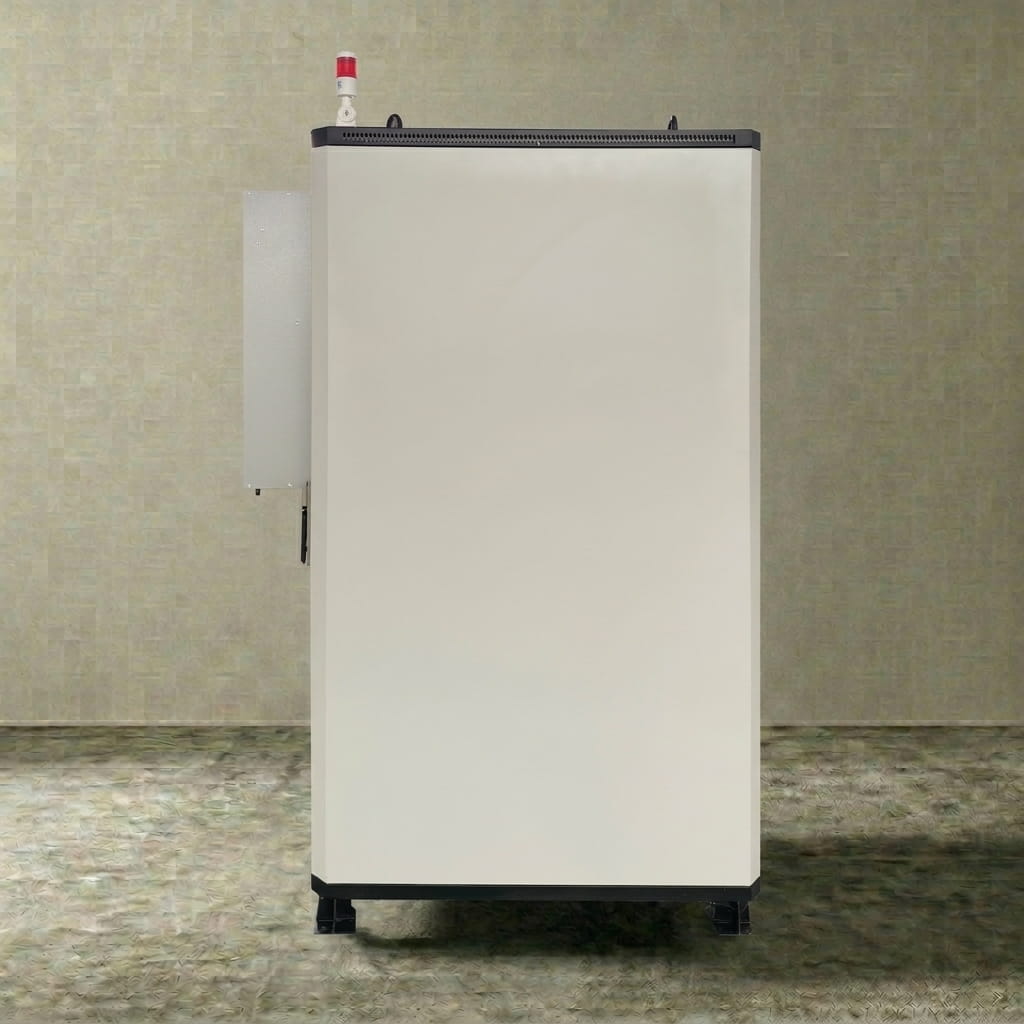

Battery Cabinet Dimensions (W*H*D) | 742*2111*1195mm | |
Battery Cabinet Weight | 1250kg | |
Level of Protection | IP55 | |
Rated Current | 100A | |
Charge-discharge Mode | 0.5P/0.5P | |
Inverter Configuration | Configuration Power: 50KW Output Rating: 50KW Apparent Power: 55.5KVA | |
Battery cycle efficiency | ≥93%@AC | |
Communication Method | Ethernet/RS485/CAN | |
Output Voltage | 380V@AC | |
Design Reference Criteria | GB/T36276-2023 | |
Operating Temperature Range | -30°C ~ 55°C | |
Operating Humidity Range | ≤95% (Non-condensing) | |
Altitude | <2000m (2000m ~ 4000m Power Derating Operation) | |
Color | RAL 9003 | |
Vibration | Zone 4 | |
Noice | ≤75 dB @1m | |

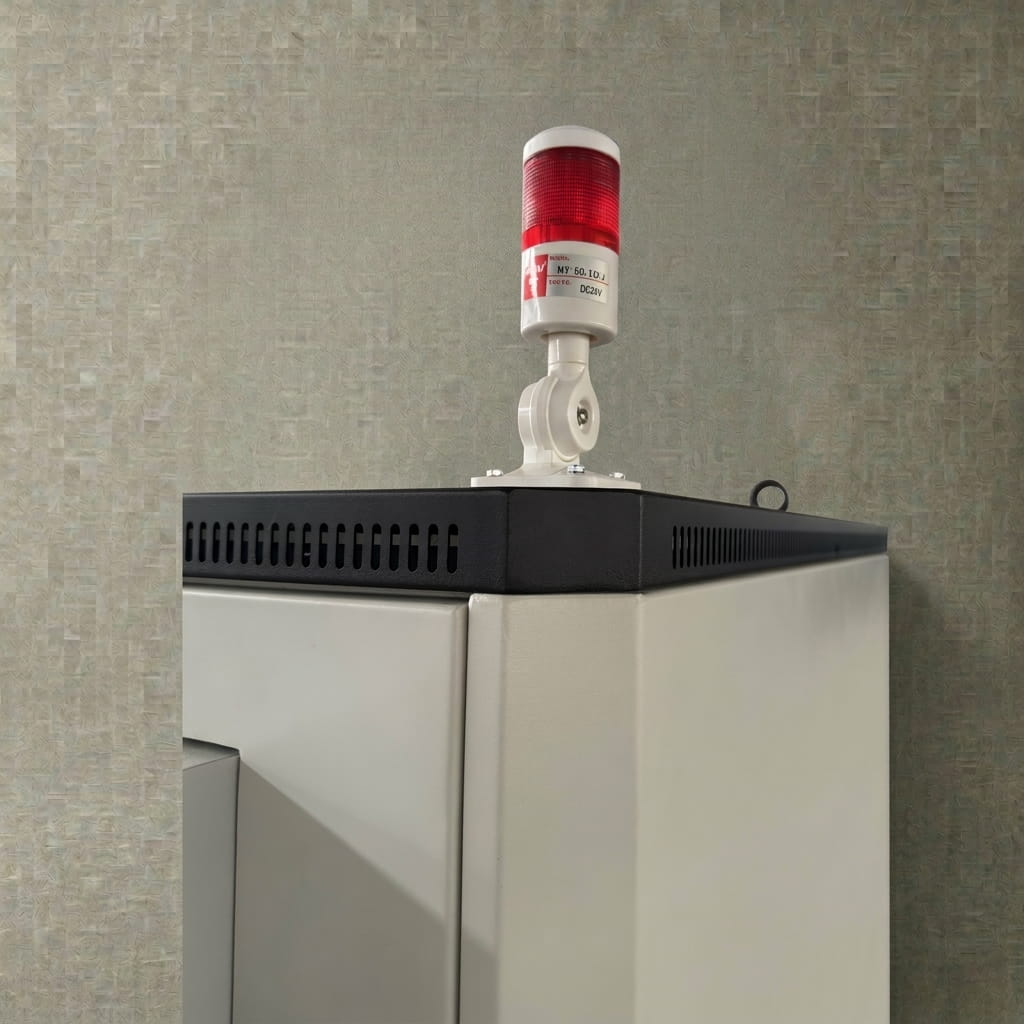

Firefighting | Cabinet level aerosol + temeperature sense + smoke sense + water detection system/sound and light alarm system | |
Emergency Stop | Available/Yes | |
